Site control, scenes and timers (Schedule)

Modified on Fri, 16 Aug at 12:35 PM

When you are logged in to a site you have the possibilities to control luminaires in any site network, and also set up site level scenes and site level timers.



Controlling a network

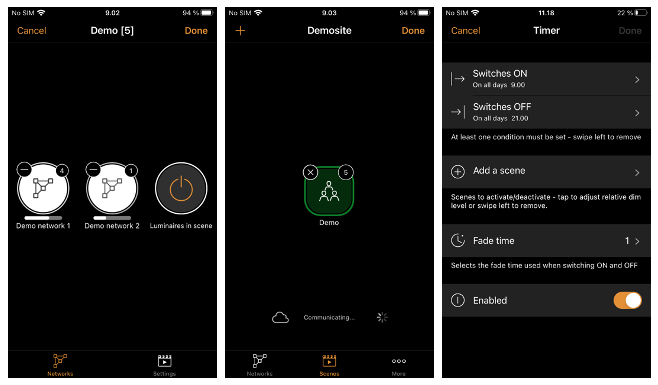

From the Networks tab (bottom left of the screen) it is possible to control an entire network in the same way as an individual luminaire, using the same gestures. When tapping on the network icon, the Luminaires tab view for that network will be opened. You can then use the normal gestures to control the luminaires in that network.


Double tapping a network will open it and from within that view it is then possible to control the individual luminaires in the network.



Site Scenes


In the Scenes tab it is possible to create site-level scenes and animations. Site-level scenes can include luminaires from different networks. A whole network can be added to a scene. Individual luminaires can be selected by opening a network by double tapping on the network icon. Creating and editing site-level scenes is done in the same way as network-level scenes. Site scenes count towards the maximum allowed total of 255 scenes per network.



Site Timers


It is possible to create site-level timers that control site-level scenes. Site-level timers can be configured in the Sites > More > Timers page. Site-level timers are configured in the same way as network-level timers. Site timers are stored in the local networks even if the timer is not visible if checked purely from the local network configuration.
