Salvador Series 1000, general overview

Modified on Mon, 17 Jun at 12:13 PM

The Salvador 1000 series allows the addressing, programming and control of up to 64* wired DALI drivers individually from the Casambi App.

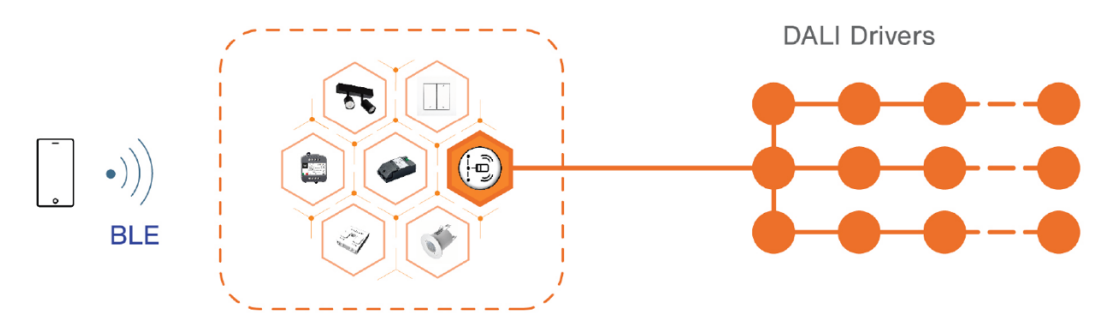

The Salvador 1000 series enables creation of hybrid networks that can consist of both Casambi Ready and DALI devices. All DALI drivers connected to a Salvador can be simply programmed and controlled in the same way as Casambi Ready devices via the Casambi App; eliminating the need for a specific DALI controller, complex DALI configuration software, or a DALI specialist.

Multiple Salvadors can be wirelessly connected to form a single Casambi mesh network.

• A Salvador is one Casambi node.

• Each addressed wired DALI driver is one Casambi node.

A Casambi network can contain up to 250 nodes, regardless of whether they are wired DALI drivers or Casambi Ready devices. Wired DALI luminaires appear in the Casambi App in the same way as Casambi Ready luminaires. They can be individually controlled, grouped, or used in scenes that combine both Casambi Ready and wired DALI luminaires.

Only DALI drivers can be physically connected to a Salvador. DALI controls (such as switches and sensors) must not be connected. If DALI controls are required to be part of the Casambi network, they must be converted to be Casambi Ready using a suitable Casambi CBU or device from one of our Ecosystem partners.

Salvadors are compatible with Casambi Evolution networks only.

* 64 drivers maximum depending on the version of Salvador 1000 series you are using. See datasheet
