CBU-ARP is a Bluetooth controlled 120-277 VAC, Casambi enabled one channel 0-10V controller with built-in 2.0 A relay and a motion sensor input.
- The voltage range of the unit makes the CBU-ARP a suitable device also for the North American market.
The 0-10V output can also be configured as DALI interface which allows for much richer feature set, such as controlling multi-channel LED driver (up to five channels) and reading diagnostic information from the driver.
For DALI driver control, CBU-ARP offers Broadcast controls for both DT6 and DT8 drivers.
The fixture profiles with wiring diagrams for CBU-ARP are listed in the datasheet, available from the downloads section at https://casambi.com/ecosystem/cbu-arp-lr/
WIRING DIAGRAMS:

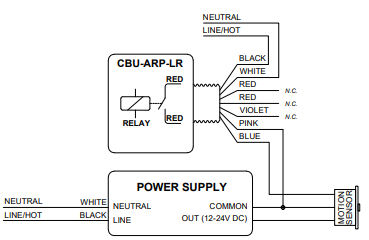

Presence sensor:

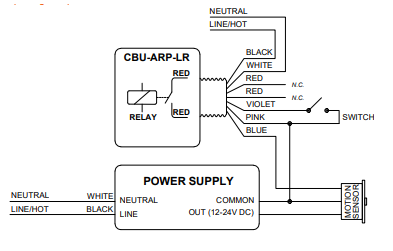

Switch or Presence sensor:

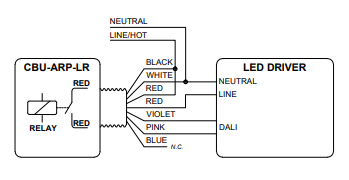

DALI DT6 or DT8 driver:

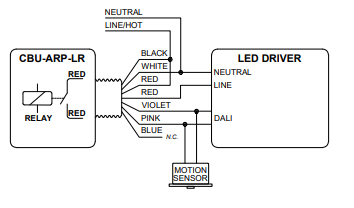

DALI DT6 driver and DALI sensor:
